MAG524w3 UHD set-top box with 4K support
MAG524 and MAG524w3 are high-performance 4K Linux set-top boxes. These next-gen MAG devices feature an Amlogic S905X2 chipset, a new GPU, and a 25% more powerful ARM Cortex-A53 processor. .
With these devices, operators can offer uninterrupted services and a high-quality user experience. The MAG JS API ensures easy migration from early MAG set-top boxes to modern models. Upon request, we integrate MAG524 and MAG524w3 with third-party middleware and CAS/DRM.
MAG524w3 is an improved version of the base model MAG424 with a built-in Wi-Fi module of 802.11a/b/g/n/ac standard. Wi-Fi works feature is dual-band so that support both 2.4 GHz and 5 GHz channels. Linux 4.9, Amlogic S905X2 chipset, IR remote control, 4K and HEVC support, 1 GB RAM, 4 GB eMMC, HDMI 2.1 output, USB 3.0, USB 2.0.
Easy to connect
A built-in Wi-Fi module (for MAG524w3), USB 3.0 and Bluetooth 4.1 support allow connecting any external drive for extra storage space or a keyboard and mouse for comfortably using the set-top box.
With MAG524, your audience can enjoy linear TV, video on demand, and other high-definition content. The set-top box plays back files over the local network and from external media.1 Companies can roll out projects with high-quality services, fast technical support, and branded UI/UX.
The interface strictly observes Google’s UI design guidelines, so it looks familiar to both the operator and the viewer.

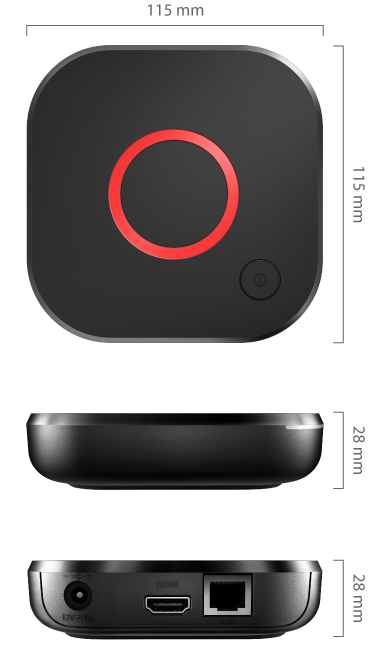

The set-top box and remote control are presented in the new Micro Fusion design. They will look good in any interior.
4K and HEVC support
MAG524 plays movies, shows, and TV series in 4K HDR.3 The device plays up to 60 fps. Even at slow Internet speeds, operators deliver high-quality content, as the set-top box supports H.265 and other modern codecs.
Reliable set-top box powered by Linux 4.9
MAG 524w3 is a durable and high-performance device. Powered by Linux, it allows you to easily develop applications and offer integration and customization solutions. The set-top box ensures a high-quality user experience and runs for months without being rebooted.
Powerful Amlogic chipset
MAG524 is 25% more powerful than the previous generation of our Linux set-top boxes thanks to the Amlogic S905X2 chipset and ARM Cortex-A53 CPU. You can enjoy even smoother playback, while the interface and applications run seamlessly.
Mag524w3 API for integrations and applications
Infomir offers the API for easy middleware and DRM/CAS integration as well as application development. The possibilities are endless. Operators develop client applications for their middleware, while system integrators create software for hotels, cruise ships, and shift camps.
Eight-channel Dolby Digital Plus™ sound
Users are able to enjoy Hi-Fi sound on modern TVs, audio systems, and home theaters. Dolby Digital Plus™ makes sure you get an immersive experience while watching a movie, TV show, or TV series.4
Branding options for the UI, packaging, cases, and remote controls
The branded UI, cases, and packaging help operators stand out from their competitors and make their brand recognizable. Companies can add their logo and colors to the standard UI or even order a unique one.
|Processor||Quad-core ARM Cortex-A53, 1,900 MHz|
|RAM||1 GB DDR3|
|Flash memory||4 GB eMMC|
|Operating system||Linux 4.9|
|DRM option||Upon request|
|Middleware supported||Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available|
|HDMI 2.1, 100 Mbps Ethernet, USB 3.0 × 1, USB 2.0 × 1|
|PC or NAS, multimedia broadcasts (RTSP, RTP, UDP, IGMP, HTTP), USB devices|
|Audio сodecs||MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™|
|Video modes||2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL|
|Video сodecs||H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support|
|Video containers||TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP|
|Image formats||JPEG, PNG, BMP, RAW|
|Subtitles||DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVtt, closed captioning|
|Playlist formats||M3U, M3U8, PLS, CUE|
